Blades get the attention because they are visibly consumable, but the components that cause the expensive, multi-day failures are the bearings and the gearbox. A blade set can be changed in a shift. A failed bearing that has damaged a shaft, or a gearbox that has run dry, takes the machine out of production for far longer and costs multiples of a blade set.
This article covers the drive-train maintenance that prevents those failures, with the specific bearing and gearbox types used across our double-shaft range.
Why Spherical Roller Bearings Are Used
Every machine in our double-shaft range runs spherical roller bearings on the main shafts — models 22219 (models 400 and 600), 22222 (models 800 and 1000 with Ø316 blades), 22232 (models 800, 1000 with Ø400 blades, and 1200), and 22240 (model 1500).
The choice is deliberate. A shredder main shaft is long, carries a heavy blade stack, and is subjected to shock loading every time the hooks bite into something hard. That produces two things simultaneously: radial load from the cutting force, and shaft deflection and misalignment as the shaft flexes under load. Spherical roller bearings address both. They are self-aligning — the outer ring raceway is spherical, so the bearing tolerates angular misalignment without loading the rollers edge-on — and their double-row barrel roller design carries very high radial load plus substantial axial load in both directions.
A rigid bearing in the same position would be destroyed by the deflection. This is why the bearing model scales with machine size: as the shaft diameter grows from Ø107 mm to Ø245 mm across the range, so does the bearing.
Lubrication Schedule
Component | Interval | Lubricant |
|---|---|---|
Main shaft bearings | Re-grease every 40–80 operating hours (weekly in continuous duty) | High-temperature, water-resistant lithium-based grease |
Gearbox oil level | Check weekly | Manufacturer-specified grade |
Gearbox oil change | Every 2,000–4,000 operating hours | Correct grade synthetic gear oil |
Couplings | Inspect at each bearing service | As specified by coupling type |
Grease fittings | Clean before each application | — |
Two cautions. First, do not over-grease. Excess grease churns, generates heat, and can damage seals — a common cause of the very bearing failure the grease was meant to prevent. Second, never mix lubricant types unless the manufacturer specifically permits it; incompatible thickeners can separate and leave the bearing effectively dry.
Clean grease fittings before applying and check for leakage or dry spots at each inspection. If your machine has sight windows on the grease fittings, use them.
Bearing Failure: Recognise It Early
Bearings almost always announce themselves before they fail. The warning signs are consistent:
- Rhythmic knocking that varies with shaft speed — a damaged raceway or roller.
- Bearing housing temperature above 70 °C in operation.
- Metal flakes in the lubricant when grease or oil is inspected.
- Increasing vibration, particularly if it grows over successive weeks.
Vibration analysis detects bearing degradation long before any of these become obvious to the ear, and is worth using on high-utilisation machines. A bearing caught at the vibration stage is a scheduled replacement; one caught at the knocking stage may have already damaged the shaft seat.
Also note the interaction with blades: worn bearings widen blade gap. If you find yourself repeatedly resetting blade clearance, measure bearing clearance before blaming the blades.
Gearbox Care

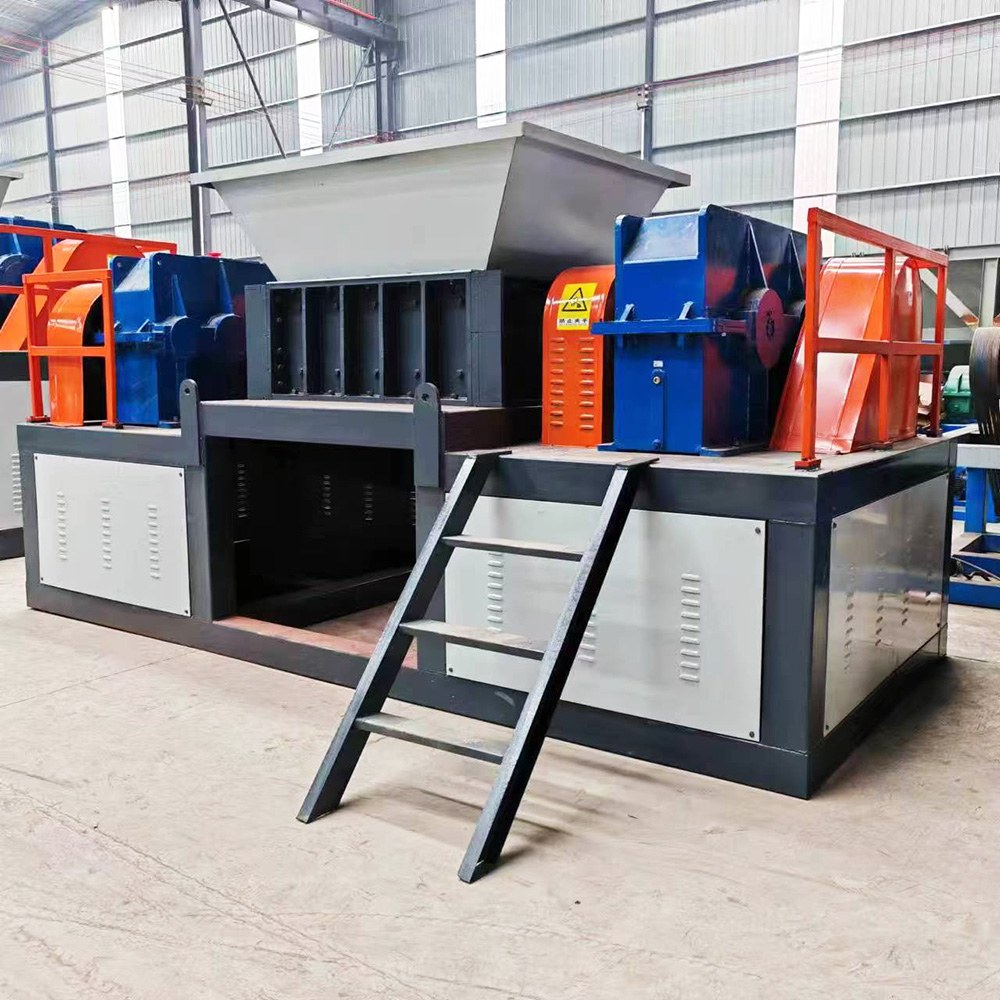

The gearbox converts motor speed into the low-speed, high-torque output that makes shear cutting possible, and it absorbs every shock load the shafts do. Our range uses heavy-duty units — ZQ400 on models 400 and 600, JZQ650 on models 800 and 1000, JZQ750 on model 1200, and ZSY400 on model 1500.
- Oil level: check weekly. Low oil is the most common cause of gearbox failure.
- Oil change: typically every 2,000–4,000 operating hours. Use the specified grade of synthetic gear oil — grade matters for heat dissipation under sustained load.
- Leak monitoring: inspect seals and mating faces regularly. An oil leak on a shredder gearbox is not cosmetic; left alone it becomes a lubrication failure.
- Vibration and noise: a change in gearbox sound usually precedes a change in gear condition.
Motor Monitoring
The drive motors are the cheapest component to monitor and the most expensive to replace. Two readings tell you most of what you need:
- Current draw. A steady rise in amperage at constant feed rate is the classic signature of dulling blades. A sudden spike indicates mechanical binding or a jam.
- Temperature and ventilation. Keep the motor and its cooling path free of dust. Dust buildup on a motor housing in a recycling plant is a genuine cause of overheating and winding failure.
Modern installations add load sensors and PLC-based automatic stop, which protects the drive train from overload damage. If your machine has a reversing function — standard on double-shaft shredders for clearing jams — verify that it actually works. A reversing facility discovered to be faulty during a jam is a considerably worse problem than one found during a test.
Shaft Alignment and Mechanical Stress
Shaft alignment is not a routine task, but it is worth checking annually or after any major intervention. Misalignment loads the bearings and gearbox continuously, and it shortens the life of all three. Combined with the practices above — variable frequency drives to avoid hard starts and reduce inrush, controlled feed to avoid surge loading, and regular cleaning to keep cooling paths clear — alignment is part of the same objective: keeping mechanical stress off the drive train.
A Note on Spare Parts
Item | Suggested stock level | Note |
|---|---|---|
Bearings (by model) | 2–4 units | Keep the correct model for your machine — 22219, 22222, 22232 or 22240 |
Oil seals and gaskets | Basic stock | Replace whenever the chamber is opened |
Gear oil | One change volume | Correct grade, stored sealed |
Grease | Continuous supply | Single specified type; do not mix |
Where your machine uses a split bearing housing, bearing inspection and replacement can be done without dismantling the shafts and blade stacks — reducing what would otherwise be a multi-day job to a matter of hours. It is worth asking about when specifying a new machine for high-utilisation duty.
Frequently Asked Questions
How often should I grease the main shaft bearings?
Every 40–80 operating hours for continuous duty, or weekly. Use a high-temperature, water-resistant lithium-based grease and avoid over-greasing, which churns, heats and can damage the seals.
What are the warning signs of bearing failure?
Rhythmic knocking that varies with shaft speed, bearing housing temperature above 70 °C, metal flakes in the lubricant, and rising vibration. Vibration analysis will detect degradation well before these become audible.
When should gearbox oil be changed?
Typically every 2,000–4,000 operating hours, with the oil level checked weekly. Use the specified grade of synthetic gear oil — the grade matters for heat dissipation under sustained heavy load.
Why does my blade gap keep opening up?
Usually bearing wear. As bearings wear, shaft clearance increases and the shafts separate, widening blade gap beyond the 0.3–0.8 mm standard. Measure bearing clearance before assuming the blades or seats are at fault.
